Drill Jig Bushes

Innovation engineering a manufacturer of drill bushes with ISO 9001 certification. General Engineering industries and automotive bushes are manufactured under our Manufacturing unit.

Drill Bushes and Jig Bushes, Be it a plain jig bush, headed bushes, renewable bushes, liner bushes, location bushes, anchor bushes or serrated bushes. We have the combination of drill jig bushes to meet your requirement. With the stocks of standard drill bushes in the India. Both metric and imperial sizes are available. Manufactured to IS(Indian Standards), JIS, BS, ISO, and DIN standards.

Long life nitride drill jig bushes are also available. If your need is for a nonstandard drill bush contact our Sales team will be happy to provide you with price and delivery. Fast turnarounds available on special drill bushes.

Technical Features

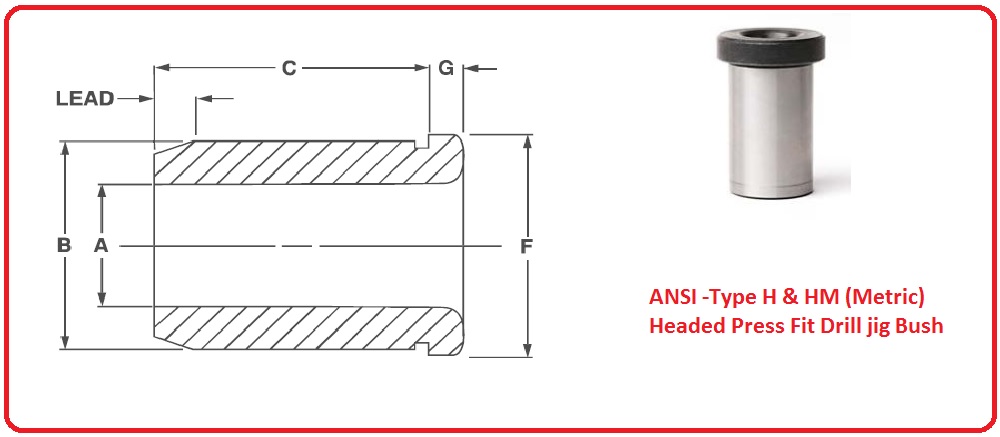

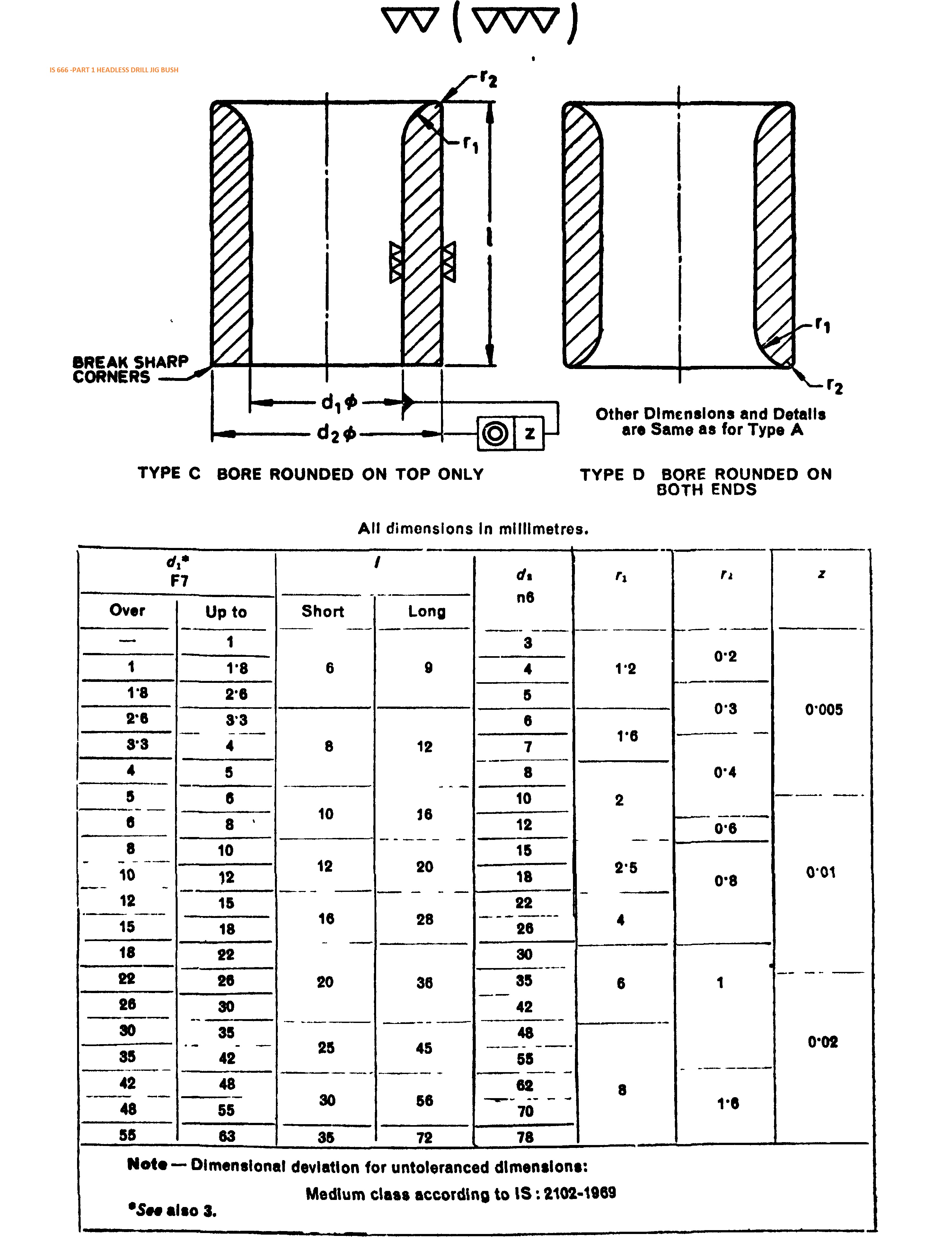

  • PRESS FIT BUSHINGS to IS 666 of 1972 – PART I (Indian Standards)

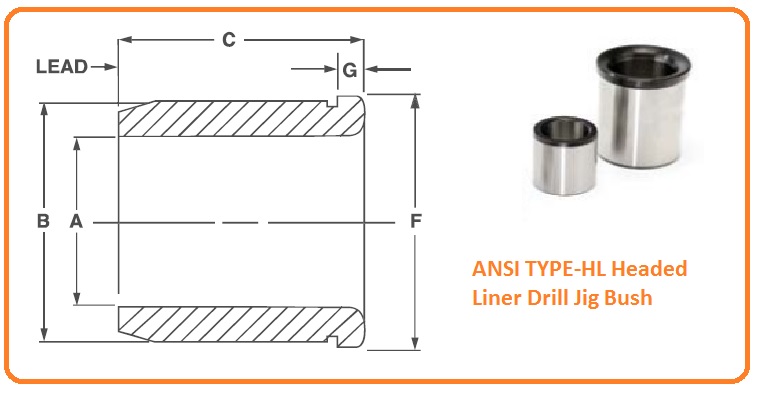

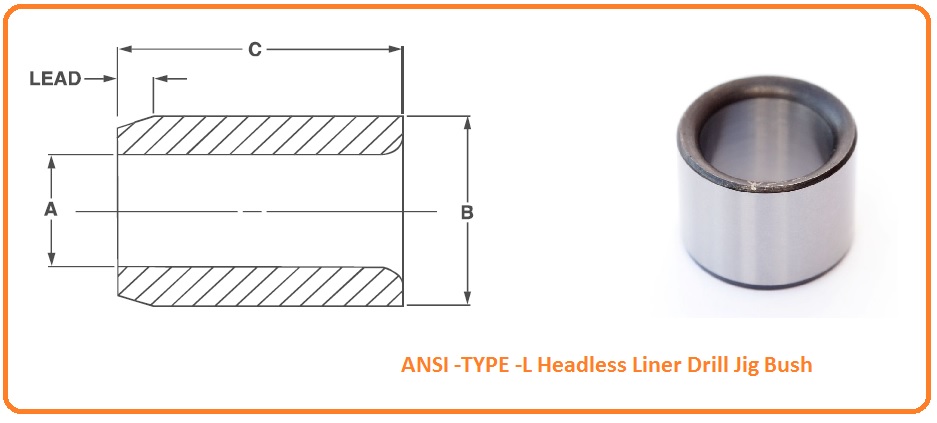

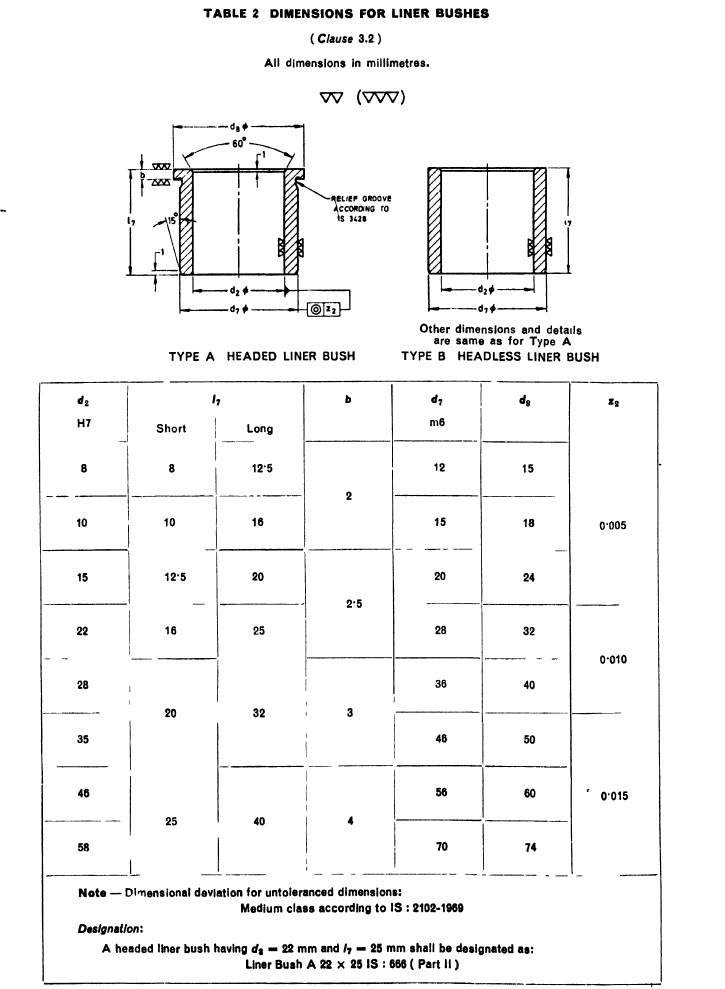

  • LINER BUSHINGS to IS 666 of 1972 Part-II     (Indian Standards)

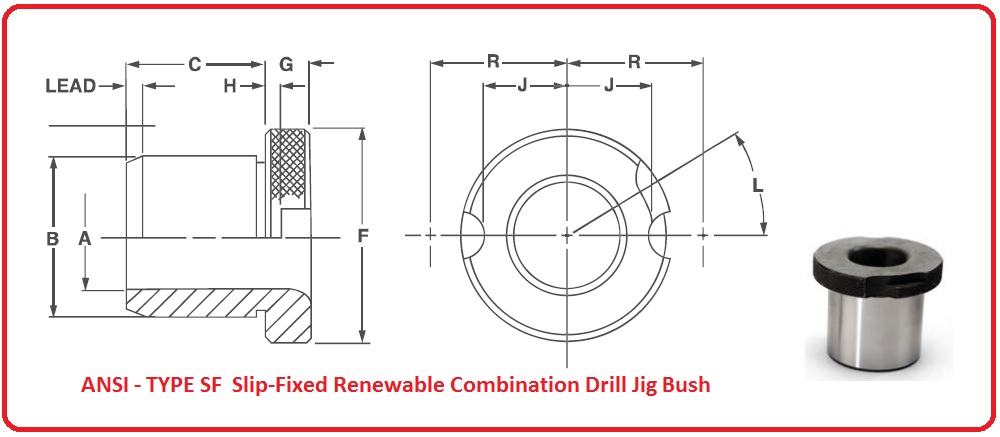

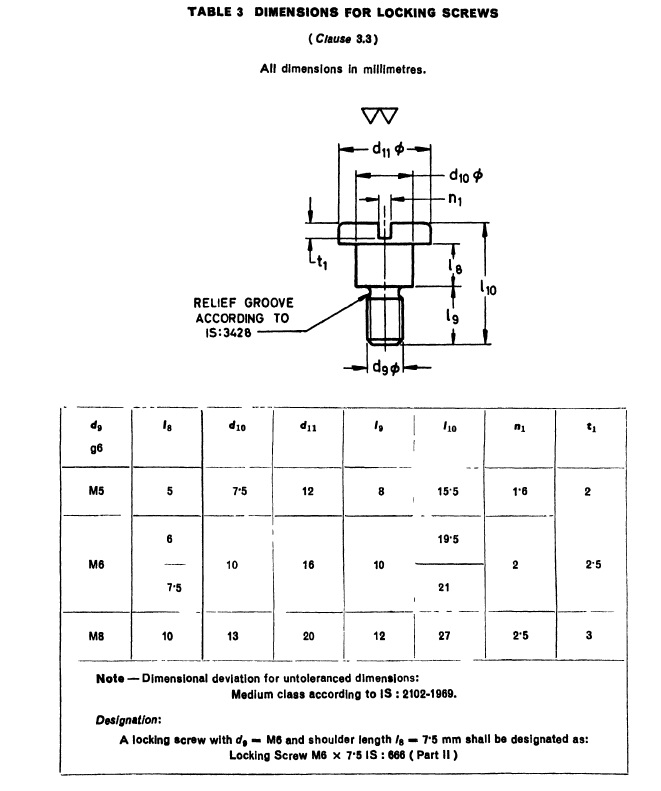

  • RENEWABLE DRILL BUSHINGS IS 666 OF 1972 PART-II (Indian Standards)

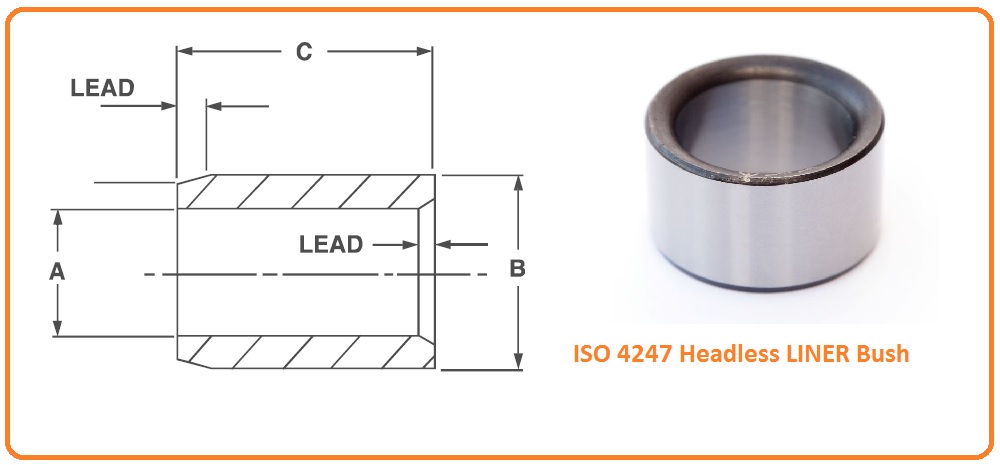

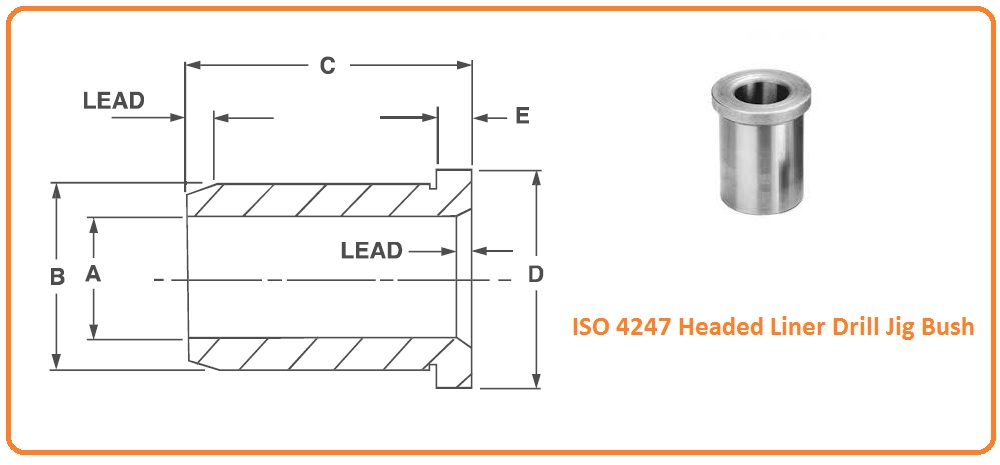

  • BS 1098 PT.2 1977 / ISO 4247 / DIN 179A

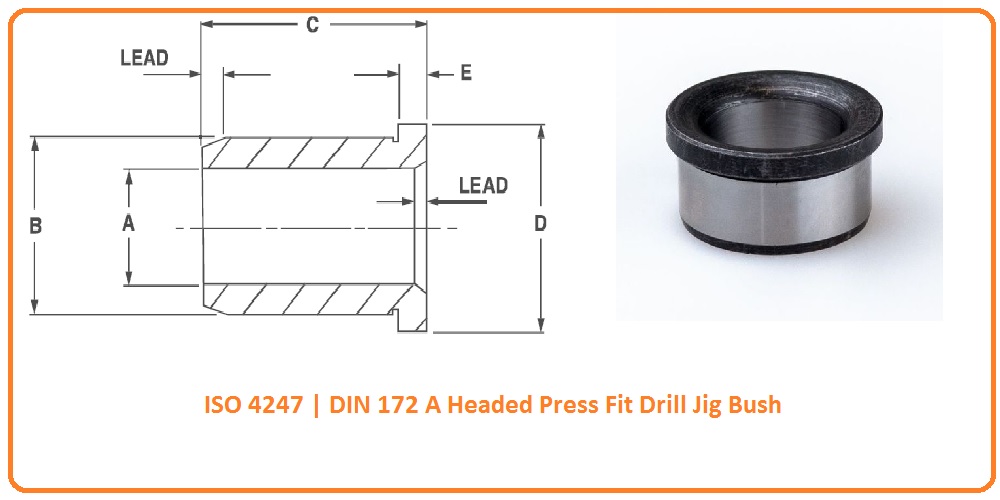

  • BS 1098 PT.2 1977 / ISO 4247 / DIN 172A
  • BS 1098 PT.1 (Imperial) 1967

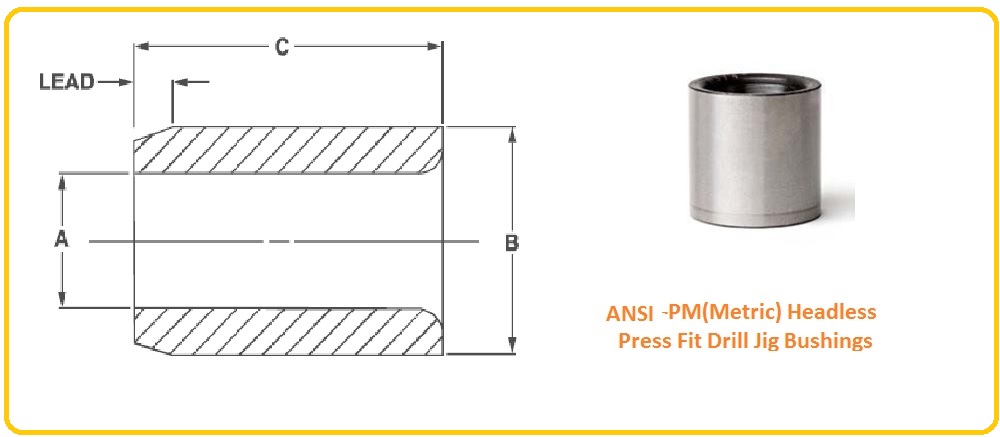

OTHER STANDARDSANSI (Metric) and  JAPANESE (JIS) on application
All standard stocked items are available on a next day service.

Drill bushes are highly accurate guides for drills and reamers. Drill bushes work by ensuring the drill enters the work piece straight and with defined accuracy. Drill bushes also prevent drill wondering, chatter and drill breakage.

In a classic drill bush setup, a jig is located and locked onto the work piece to ensure repeatable positioning of the drill bushes and resultant drilled holes. Drill bushes lend themselves to not only drilling applications, but for location, alignment and rollers, due to their accuracy.


Other Products for Tooling & All Industries

1. Guide Bushes
2. Receiver Gauges Guide Bushes
3. Fixture Using PIN & BUSHES
4. Locating Pins
6. Brass & Phosphor Bronze Bushes
7. Guide Bushes for SPM’s
8. NITRIDED BUSHINGS
9. Non-Standard Bushings

Product Gallery
